Fingerprint enrollment on K30 Device

How to enroll fingerprints on a ZKTeco K30 terminal

The easiest way to enroll fingerprint templates, is to make use of an enrollment reader (Refer to our product page) together with the Binary City Time Enrollment application. However, it is also possible to enroll directly on a K30 device.

The instructions below will guide you in this process.

For the enrollment of users on the K30 device, the employee(s) must first be loaded in Binary City Time.

Ensure that the staff member is loaded on Binary City Time and synced to the device first (never click Add User without creating the person in Binary City Time first).

For instructions on how to load a new employee in Binary City Time, please refer to the section in our manual, by clicking here.

Step 1. Create the employee in Binary City Time.

Step 2. On the K30 device, press  and hold the M/OK button.



If any administrator, has already been linked to the device, it will indicate: “Admin Affirm”, which means that general staff members cannot open the menu of the device. A registered “device administrator” needs to then open the menu with his or her registered fingerprint (or pin code, or RFID card).

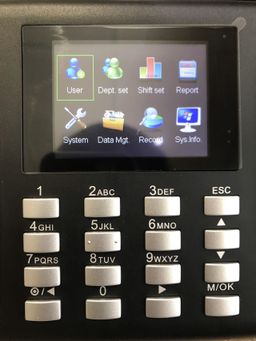

Step 3. Once the menu is open, choose User by pressing the M/OK button

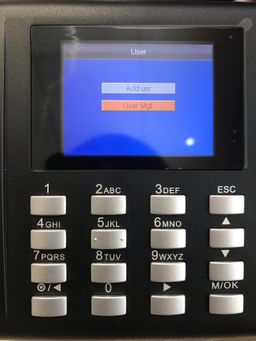

Step 4. With the arrows, scroll to User Mgt and press the M/OK button

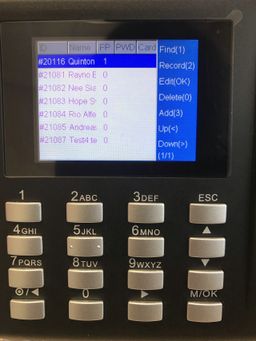

Step 5. With the arrows, scroll to the employee you wish to enroll and press the M/ OK button,

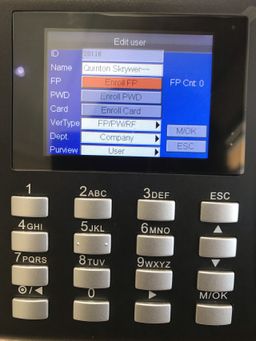

Step 6. When you click the employee, the details of the employee will open, with the arrows, scroll to Enroll FP and press the M/OK button



Step 7. Start enrolling the finger which the employee wishes to have enrolled, have the employee place the same finger three times on the sensor as prompted.



Step 8. The device might ask you to “Please try again” if all 3 registration were not similar.  If this does happen, simply repeat the process.

You can continue to enroll another fingerprint for the same employee, by simply following the same steps starting at Step 8.

Once done, press ESC to exit the menu.
