DESCRIPTION

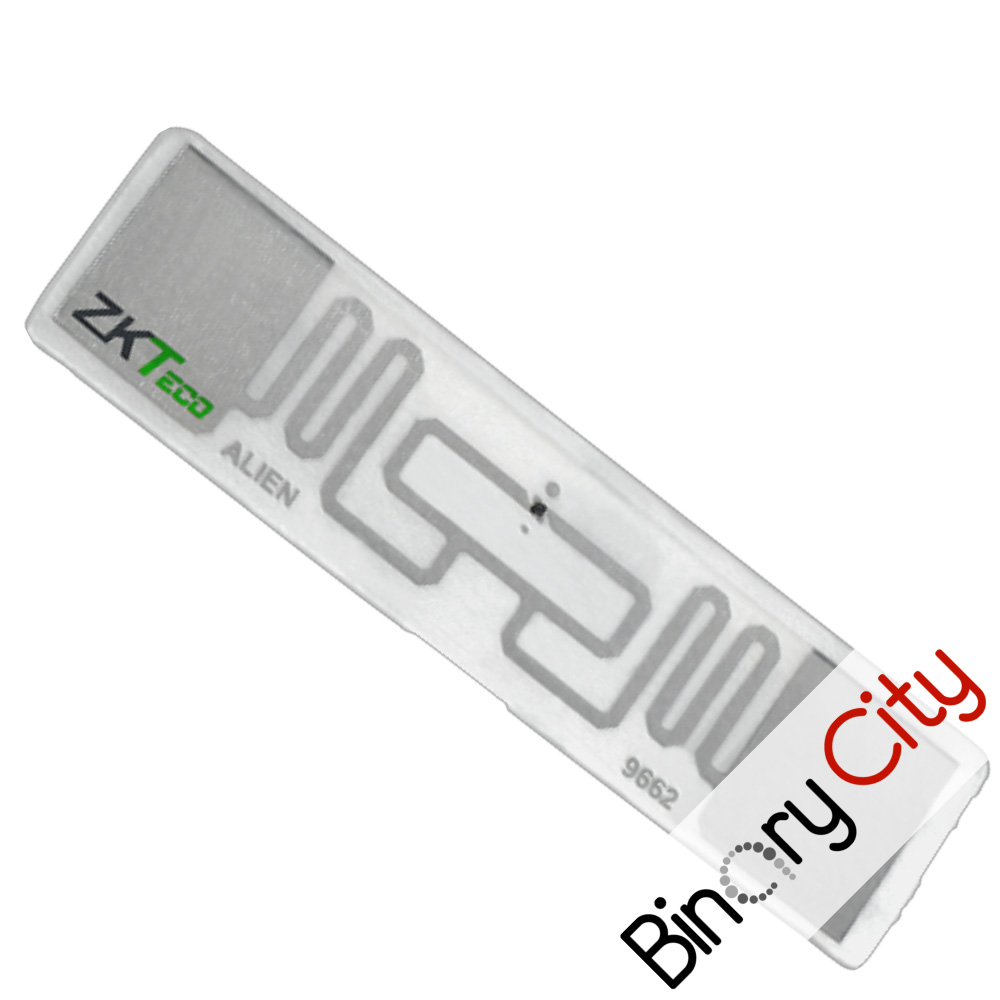

The ZKTeco tag sticker adopts an ultra high frequency encrypted chip, especially designed for ZKTeco UHF readers.
SPECIFICATIONS
Working Frequency from 860 - 928 MHz
Reading distance up to 10 meters for UHF1-10E and UHF1-10F (Determined by the environment and reader)
Protocol - ISO18000-6C
Memory Capacity - 800 bits
Chip UID - 64 bytes
Storage Structure EPC : 96 bits; TID: 96 bits; User: 512 bits; Password: 64 bits
Data Storage 5 years ( Only for chip )
Working Temperature from 30℃ ~ 55℃
Storage Temperature from 10℃ ~ 40℃
Storage Humidity 40%-50% RH
Dimension - 85mm*54mm*0.8mm( error±0.06mm )
Packaging Process - Hot Laminating
